Specification:
Universal Ac Charger Specifications:
Input: AC 110-240V, 50-60Hz

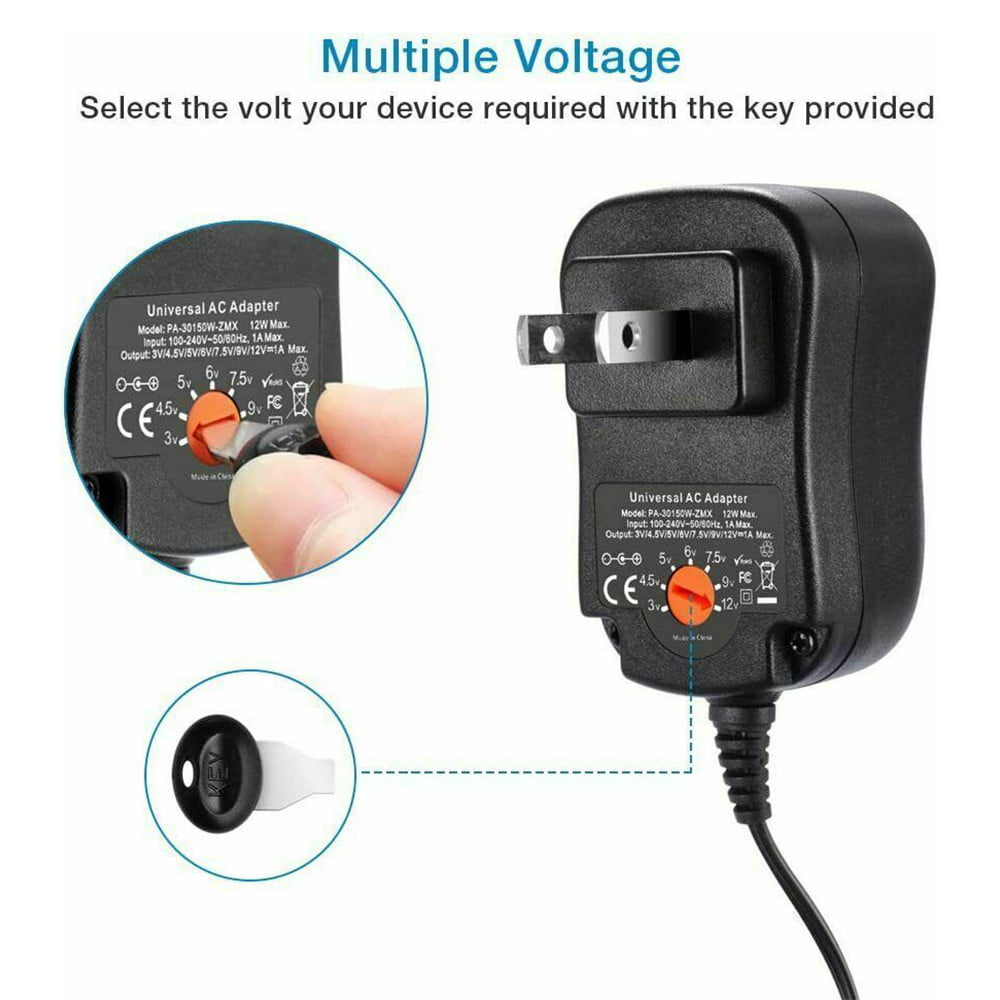

Output: 3V, 4.5v, 5v, 6v, 7.5v, 9v, 12V, 1a - 2a
Power: Max 12W
AC Input:110-240V
DC Output: 3V, 4.5V, 5V, 6V, 7.5V, 9V, 12V, 12W.
Compatible 12 volt 1a /1000mA, 5v 2.5a / 2500mA, 0.75a / 750mA, 1.5a / 1500mA

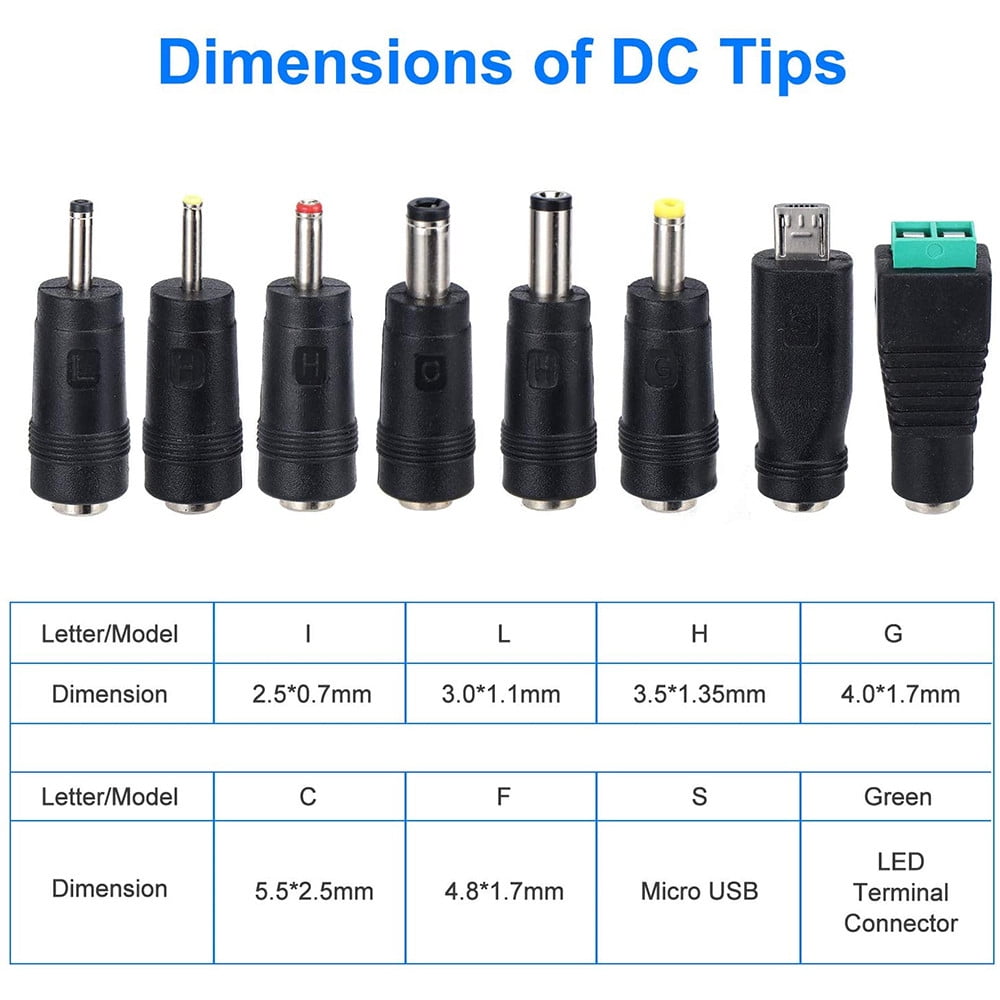

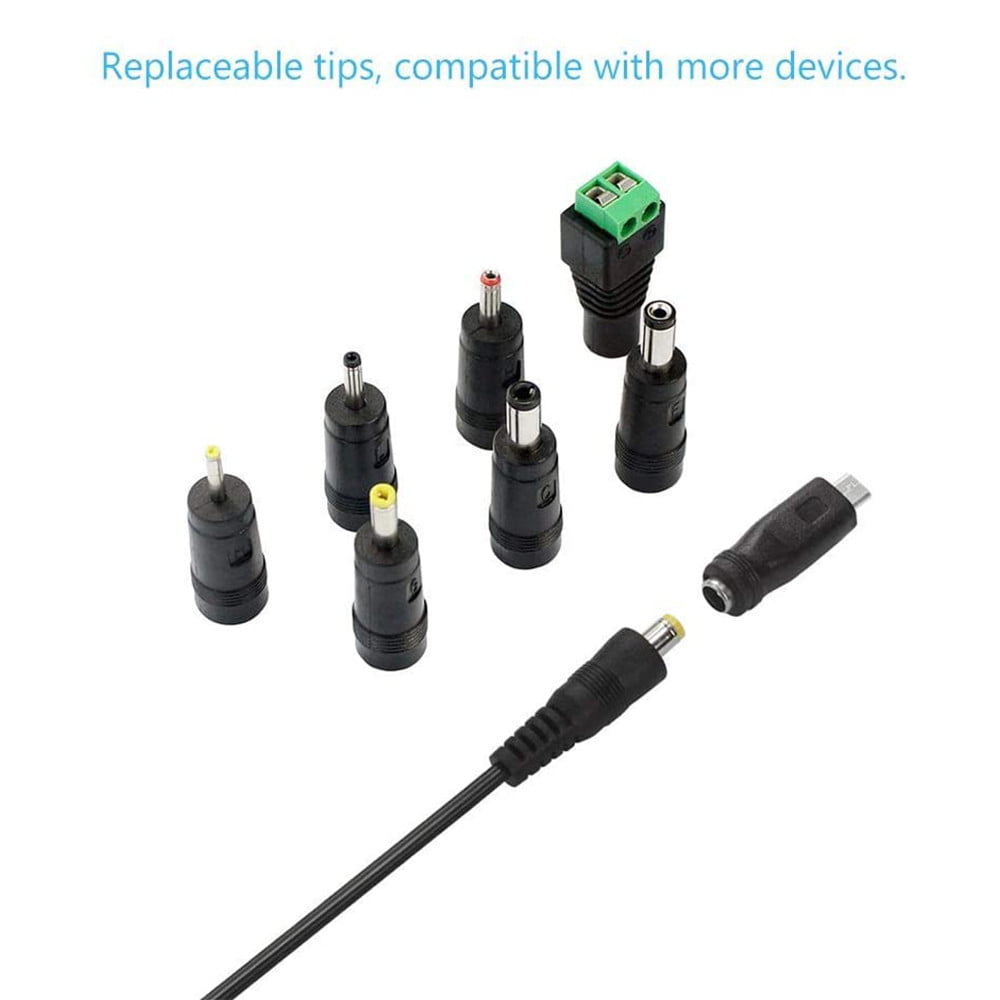

DC Adapter Tip Dimensions:
Tip 1: 5.5x2.5mm
Tip 2: 5.5x2.1mm
Tip 3: 4.8x1.7mm
Tip 4: 3.5x1.35mm
Tip 5: 3.0x1.0mm
Tip 6: 2.5x0.7mm
Tip 7: 4.0x1.7mm

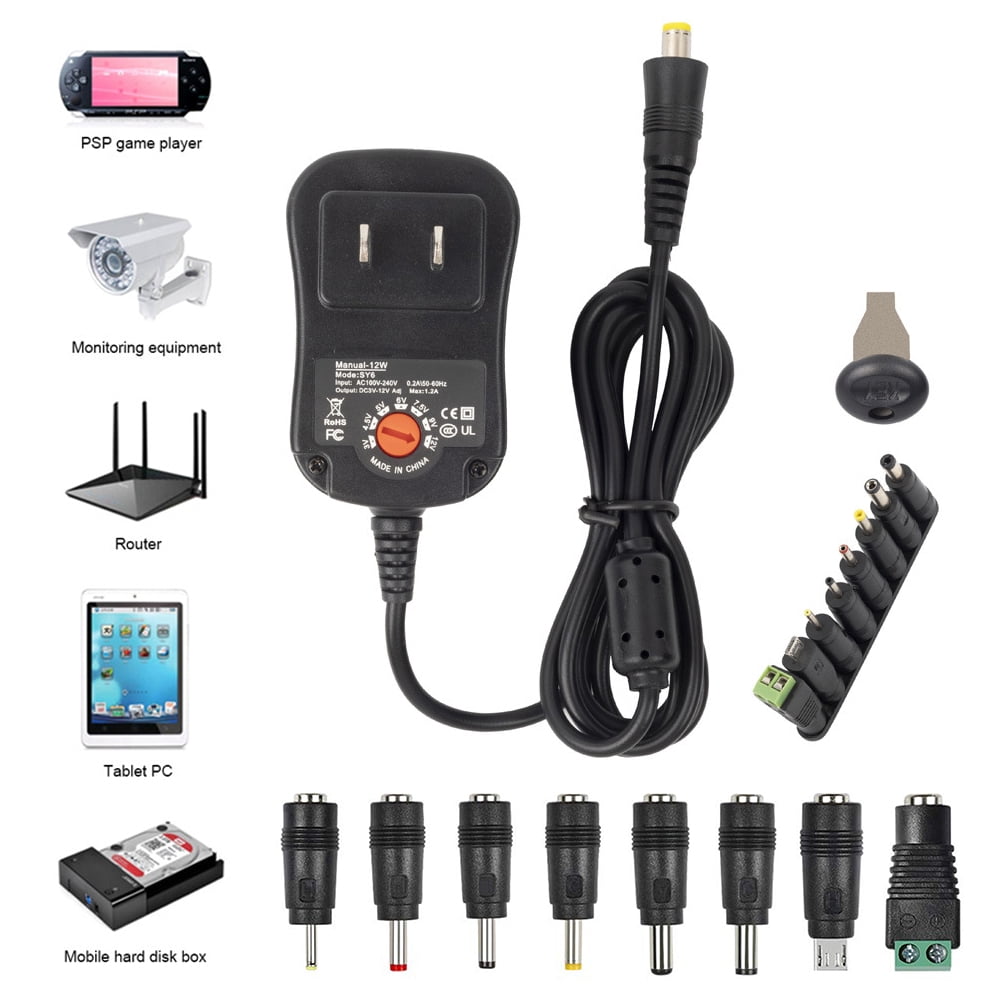

Package Include:
1 x Universal Power Supply
8 x Connector
Warm Reminder:
1.It is a 12w versatile adjustable charger, please do not use this ac wall charger to power 24w 30w 36w or other higher power watt electronics.
2.Power wattage = Volts x Amps; If your device requires 12v 1000mA or 1a, then it requires 12w. 2000mA equals 2a.

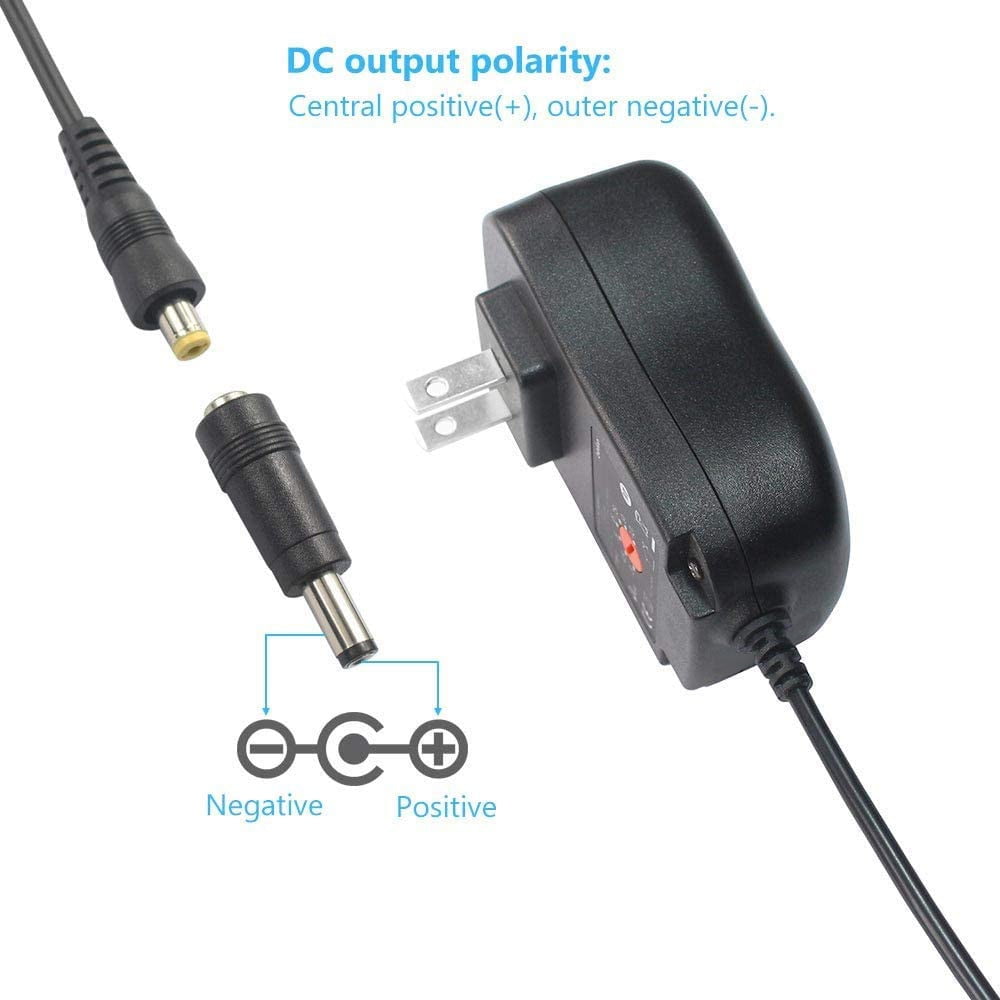

3.DC Polarity is Central Positive(+), and could not be reversed, make sure that your electronics devices have the same polarity power requirements.
